Serpentine belt diagram for 2006 dodge 3500 5.9 litre with air Many manufacturers put the belt diagram somewhere under the hood-look at the underside of the hood or the engine around the radiator, or on the strut housing. I'm going to put the belt routing diagrams for the third gens all in one post so that I can print them and put them in the glove compartment ...

Posted in: Dodge Truck Tags: diesel, Dodge, dodge diesl, dodge ram, ram, ram 2500 « 1995 Ford f150 4.9L belt diagram. ... 2006 Chevy Impala Serpentine Belt Diagram-3.4L Engine. January 05, 2013 . 2001 Dodge Intrepid Serpentine Belt-3.2L and 3.5L engines. December 14, 2012 ...

2006 dodge ram 2500 serpentine belt diagram

SOURCE: I need a belt diagram for the serpentine belt on You will find it in this Dayco PDF document. It is diagram 7.57 on page 124. The vehicle is listed on page 40 (2006 Dodge RAM pick ups) with the reference to the belt routing diagram. Serpentine belt diagram for Dodge Ram 2500 Hemi 2006 - Answered by a verified Dodge Mechanic We use cookies to give you the best possible experience on our website. By continuing to use this site you consent to the use of cookies on your device as described in our cookie policy unless you have disabled them. This article applies to the Dodge Ram (2002-2008). The serpentine belt is made of a rubber compound and is grooved for optimal friction with the accessory pulleys. A serpentine belt tensioner is used to keep the amount of friction at the proper level. Dodge recommends changing the serpentine belt between 75,000 and 90,000 miles.

2006 dodge ram 2500 serpentine belt diagram. SOURCE: routing serpentine belt 2006 dodge. going clockwise starting on the passenger side of truck. 1 over the alternator pulley. 2 under the water pump pulley. 3 over the idler pulley. 4 over the power steering pulley. 5 over radiator fan pulley. 6 over crankshaft pulley. 7 automatic tensioner. Anybody have the serpentine belt routing diagram for an 04? Naturally there is not one under the hood. Thanks for the help!! ... 2004.5 Dodge 2500 QC 2WD short bed Jeff Garmon built 48RE trans, II SPS62, Fass 95, Smarty S06 POD, MBRP exhaust SOLD -2007 Dodge 2500 QC 4X4 short bed, G56. Gates Serpentine Belt For 2003-2012 5.9L 6.7L Cummins 24V; Gates Serpentine Belt Kit For 2003-2012 5.9L 6.7L Cummins; Serpentine Belt + Tensioner Kit For 03-12 5.9L 6.7L Cummins 24V; Component Failure. In some cases, the failure of components connected to the serpentine belt might be due to belt problems rather than the component itself. 17 Sept 2013 — 2006 dodge ram belt diagram looking for a diagram for the belt on a 2006 ... is: 2004 Dodge Ram 2500 5.9L Diesel Serpentine Belt Diagram .

Remove an alternator from a 2006, 2500 diesel dodge pick up. as always begin with the negitive on the battery remove terminal.there is what they call a ideler pulley for serpentine belt it typically takes a 3/8 ratchet to put torque on it to remove tension on belt ounce youve completed the belt tension removal move on to the altenator always if ... Need 2006 belt diagram! Jump to Latest ... Registered. Joined Jun 26, 2009 · 2 Posts . Discussion Starter · #1 · Jun 26, 2009. Can't find a diagram for 2006 ram 2500 diesel. Can anyone help? Save ... Make sure you have the correct belt. You will probably have to get it from DOdge or Cummins for your application. 2016 3500 4x4, Aisin, 19.5's ... 15 Nov 2018 — Serpentine belt replacement on a 2nd gen dodge ram cummins cumminsworks. I have been unable to find one on any website and it is not under ... This article applies to the Dodge Ram (2002-2008). The serpentine belt is made of a rubber compound and is grooved for optimal friction with the accessory pulleys. A serpentine belt tensioner is used to keep the amount of friction at the proper level. Dodge recommends changing the serpentine belt between 75,000 and 90,000 miles.

Serpentine belt diagram for Dodge Ram 2500 Hemi 2006 - Answered by a verified Dodge Mechanic We use cookies to give you the best possible experience on our website. By continuing to use this site you consent to the use of cookies on your device as described in our cookie policy unless you have disabled them. SOURCE: I need a belt diagram for the serpentine belt on You will find it in this Dayco PDF document. It is diagram 7.57 on page 124. The vehicle is listed on page 40 (2006 Dodge RAM pick ups) with the reference to the belt routing diagram.

2006 Ford F150 Serpentine Belt Diagrams — Ricks Free Auto ...

How to Change the Serpentine Belt on a 2003 - 2007 Dodge Cummins 5.9

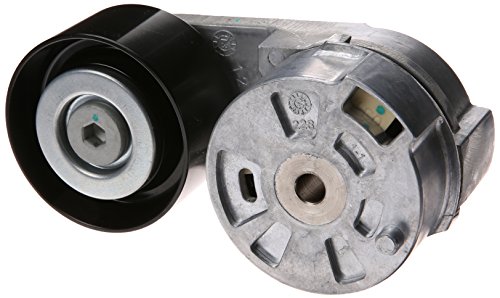

Gates 38285 Belt Tensioner
