30 Jan 2017 — I have a powerstat F246 variac 240vac input and 0-280vac output. Can someone give me the wiring diagram in and out for 240vac operation? In this video i explain how to wire a variac.

Variac Engineering Drawings. Below are engineering drawings for some of our VARIAC variable transformers, voltage regulators and accessories. Please contact ISE for items not shown. For assistance in the selection of variable transformers go to Variac.com Home .

Variac wiring diagram

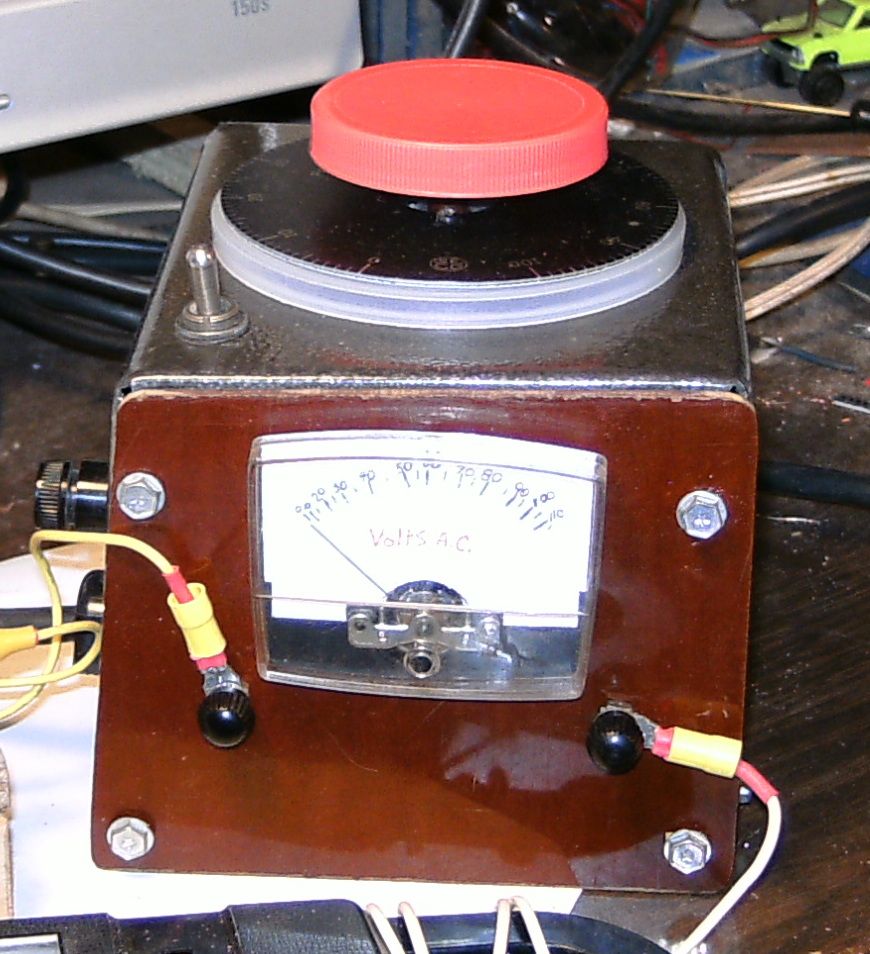

Step 1: Well Now I Have a Variac · Step 2: Variac Schematic · Step 3: Bench Test · Step 4: Making My Case · Step 5: Adding a Voltage Meter · Step 6: Meter Schematic. I acquired a variac from the club junk sale, only problem is I had no idea how to wire it up and am too stubborn to google the instructions. This shows how e... Figure 5 shows the low voltage power supplies and the variac wiring. The pos/neg 6.8 VDC supplies are derived through C12 directly from the 120 VAC line; this cap drops most of the input voltage. Half wave rectification is adequate here due to plenty of headroom for filtering and zenering by C13,C14 and Z1,Z2. These supplies will handle a ...

Variac wiring diagram. N4AEQ Ham Member QRZ Page. I picked up a new powerstat but no wiring diagram. it says Superior electric type 21: input 120 vac. output 0-140 vac. Has terminals 1,2,3,4,5. 3 is the wiper output. 1 is a input. 5 is tapped 1/3 way from the input. 2 is tapped 2/3 way from the input. A variable voltage autotransformer (also known as variac) is a transformer which is able to transform Variable Voltage Autotransformer Wiring Diagram, Image. The inductor is shaped like a doughnut (toroid) with wire wrapped radially This diagram has 5 terminals, but 3 and 4 terminal variacs eliminate one or two of. Here's the Powerstat catalog in PDF: diagramweb.net 5 terminals on the variac model S and i cant find a specific wiring diagram anywhere. encountered while drilling holes, installing wiring, etc, during installation.. in the tables and diagrams are for motor driven units and units with the knob. I picked up a new powerstat but no wiring diagram ... Variac Wiring Diagram. Collection of variac wiring diagram. A wiring diagram is a simplified conventional photographic depiction of an electric circuit. It reveals the components of the circuit as simplified shapes, as well as the power as well as signal connections in between the devices. A wiring diagram generally offers details about the…

A simple yet useful variable voltage autotransformer wiring has been discussed here. The design helps you to obtain multiple voltage outputs by assembling a couple of ordinary transformers and the same number of DPDT switches together. The principle is normally employed in most automatic as well as manually operated voltage stabilizer units. A variable voltage autotransformer (also known as variac) is a transformer which is able to transform Variable Voltage Autotransformer Wiring Diagram, Image. A POWERSTAT Variable Transformer is a precision product packed with care. encountered while drilling holes, installing wiring, etc, during installation. What I haven't found in my travels is a wiring diagram, using a Honeywell thermostat (t6360b) and a single variac that will simply allow me to have nominal (controlled by variac) airflow when its cool, and ramp the airflow up to full when it hits the thermostat threshold. Albastru Sandwich întrerupe Termostat Honeywell T6360 Investmentpropertyoftexas Com. Honeywell t6360 to nest e wiring help replacing t6360b with dt92e room stat turn on heater installation thermostat homeownershub worcester 28i rsf and home 1036 4360 central d i y kit uk420 dt90e a sundial plan pack 7 day faq pump overrun diagrams for 1028 mechanical adapting pre built variac sd cooling click ...

variac wiring diagram – A Novice s Overview of Circuit Diagrams A first check out a circuit representation could be confusing, however if you could check out a subway map, you can read schematics. The function is the exact same: getting from point A to aim B. Literally, a circuit is the course that allows electricity to flow. wiring diagram from variac device to motor. bellow picture is the front side of the variac. I got four wires going into DC motor. And above is the backside of the variac device and it seems to me that, it goes through a inductor depicts as in bellow figure. The inductor is shaped like a doughnut (toroid) with wire wrapped ... This diagram has 5 terminals, but 3 and 4 terminal variacs eliminate one or two of ... variac wiring diagram – What’s Wiring Diagram? A wiring diagram is a schematic which uses abstract pictorial symbols showing each of the interconnections of components in a system. Wiring diagrams include a pair of things: symbols that represent the ingredients in the circuit, and lines that represent the connections between them.

POWERSTAT Variable Transformers | Superior Electric

This uses 4 as the common terminal for input and output, as specified on the diagram. Terminal 3, shown connected to the wiper, is always the high side of the output. The output voltage should increase with clockwise rotation of the knob. If it's backwards, move the one output wire from 4 to 2, so 2 becomes the common.

DIY Twin Variac - ATC-800+ - Fan/Heater Controller

That variac goes back far enough that it may not be mentioned in much of the literature you can find online. Nevertheless, there was a certain pattern to these transformers that was consistent throughout, so you could find the diagram for just about any other five-wire variac and figure out what was going on.

Molten Voltage : Two Old Variacs - Variacs modification mods page

Re: Mystery variac wiring. This Variac is a Philips variac from the netherlands. Whrn the mains is connected to N and L and the output to N and T this transformer goes from 0 to 260 volts. Z is the middle point of this transformer. When the mains is connected to N and K this transformer goes from 0 to 220 volts.

Variac is blowing fuses - Electrical Engineering Stack Exchange

I don't have access to any electrical wiring diagram, so I need to find it's typical wiring diagram from variac device to motor. bellow picture is the front side of the variac. I got four wires going into DC motor. And above is the backside of the variac device and it seems to me that, it goes through a inductor depicts as in bellow figure.

Variac? How to wire an use?

Jun 15, 2009. #4. Bob S. 4,662. 6. I think that the Variac can be wired for either 125 or 220 volt input, on the terminals in center picture.. The label very clearly shows this. The common for either is the tab with the "0". Using 240 volt input on thr 220 tab might push the iron into saturation.

Correct Variac Wiring? - D.I.Y. Kit - UK420

The single winding is the same diameter wire from end to end, so the maximum current at any voltage is 2.25A. Unlike any normal transformer, a Variac can be used with DC, although it is nothing more than a 'rheostat' or variable resistor. Needless to say, there is no transformer action, and usefulness is severely limited.

Can Someone explain Variac wiring to a dummy? - Pre-1950 ...

Portion of Variac dataplate showing schematic of device. The diagram above was photographed off of the data plate on one of my variacs. As you can see, there are 4 fixed taps (#’s 1, 2, 4, and 5) and a moveable tap (#3) In a typical application, they are wired to allow an input of, say 120V, and an output of 0-140V.

Variable transformer starter circuit | Marko's science site.

VARIAC Variable Transformer Selector. VARIAC PRICING. Other Resources: Variac Drawings provides detailed mechanical and electrical drawings of our products when our part number is known. Variac Literature Variac Cross Reference identifies suitable replacements for older and obsolete variable transformers. ISE Web Store provides pricing for some of our more popular VARIAC transformers.

How to Build a Homemade Variable Voltage Autotransformer ...

Variable Transformers. Schematics & Wiring Diagrams ... or as neutral in a three wire single phase series and four wire, ... variable transformer assembly.

The â€œWrong Wayâ€ To Connect A Variacâ€¦..and why you might want ...

Variac Transformer Wiring Diagram A POWERSTAT Variable Transformer is a precision product packed with care. encountered while drilling holes, installing wiring, etc, during installation. . in the tables and diagrams are for motor driven units and units with the knob.

China Three Phase 2kVA 220V Input Manual Digital Variac ...

Re: Variac Wiring. From: Jeff W. Parisse [SMTP:jparisse-at-ddlabs-dot-com] Sent: Monday, December 08, 1997 10:15 AM To: Tesla List Subject: Re: Variac Wiring Adam, Pin 1 (common) and pin 2 are the inputs for 0-140V output. Pin 1 (common) and pin 4 are the inputs for 0-120V output. The output is between pins 1 (common) and pin 3 (wiper).

VariacÂ®

Take a look inside a vintage VARIAC - by Molten Voltage. ... There is a wiring diagram at the end of this page if you want to peek ahead.

A Deluxe Test Bench Variac | Nuts & Volts Magazine

Variac Fan Controller Wiring Diagram notes on the troubleshooting and repair of microwave ovens back to microwave oven repair faq table of contents microwave oven troubleshooting safety the following applies to microwave oven troubleshooting once the cabinet freshroast sr teardown – part 2 roast geek in part two of the freshroast sr roaster ...

DC Shunt Motor Controller Circuit using Variac - Homemade ...

1) Wire the incoming neutral to 4 and the incoming live to 1. Neutral out is 4 and live out is 3 Test the variac. If you get 0V with the dial at 0 and 220V with the dial at 220 then we are good to go. If the dial appears to work the wrong way around proceed to step 2. 2) Wire the incoming neutral to 2 and the incoming live to 5.

How to Build a Homemade Variable Voltage Autotransformer ...

13 Jun 2018 — My other variacs have wiring diagrams on the body somewhere. This one does not. Here is a link to a product catalog that has related ...

Can't find this electrical symbol - Electrical Engineering ...

Figure 5 shows the low voltage power supplies and the variac wiring. The pos/neg 6.8 VDC supplies are derived through C12 directly from the 120 VAC line; this cap drops most of the input voltage. Half wave rectification is adequate here due to plenty of headroom for filtering and zenering by C13,C14 and Z1,Z2. These supplies will handle a ...

MZE-Electroarts Entertainment - MZEntertainment.com: Dr. ZEE ...

I acquired a variac from the club junk sale, only problem is I had no idea how to wire it up and am too stubborn to google the instructions. This shows how e...

Build Autotransformer-Variac AC and DC Power Supply

Step 1: Well Now I Have a Variac · Step 2: Variac Schematic · Step 3: Bench Test · Step 4: Making My Case · Step 5: Adding a Voltage Meter · Step 6: Meter Schematic.
