while FoR SERViCE SEND To: AUTO METER PRODUCTS, INC. 413 W. Elm St., Sycamore, iL 60178 USA (866) 248-6357 Email us at service@autometer.com 2650-1244-00 Rev. B 3/30/09 SERVICE For service send your product to Auto Meter Products, inc. in a well packed shipping carton. Wiring Diagram For Autometer Gauges Install an amp gauge in your car and you will instantly know the general condition of your vehicle's electrical system. Also known as an ammeter, this is one of. Ford L engine blocks require a metricto-NPT adapter (Auto Meter PN) to install the coolant temperature sending unit into the block. These gauges are.

Jul 30, 2021 · Wiring diagram not just offers detailed illustrations of everything you can perform but in addition the processes you ought to stick to whilst carrying out so. Take the negative wire from the voltmeter and make a good connection on a grounded screw in the car. Toll free tech support. Variety of autometer tach wiring diagram. This is the voltage that the gauge will indicate. The wire from the fuse box step 3 should. Toll free customer service.

Autometer gauge wiring diagram

Over the years, Auto Meter has established itself as a manufacturer of quality, professional automotive gauges. Adding any Auto Meter gauge to your vehicle will help to ensure accurate and consistent readings from your car or truck. Installing an Auto Meter fuel gauge is an easy task once you have decided how and ... As stated earlier, the traces in a Autometer Gauge Wiring Diagram signifies wires. Occasionally, the wires will cross. However, it doesn't imply connection between the cables. Injunction of two wires is usually indicated by black dot on the intersection of 2 lines. How to Install an Auto Meter Pro-Comp Ultra-Lite Water Temp Gauge - Electric on Your Musta double check that all connections are tight. After starting engine, check wiring connections for hot spots. Be prepared to shut engine off immediately if hot spots are detected.

Autometer gauge wiring diagram. See Diagram 2 Firewall 12-Pin Wiring Harness & Plug GAUGE 12-Pin Wiring Harness CUP Grommet Red-12V Ignition Switch White-12V Dash Lighting Dimmer 3 amp Fuse Shrink tube over staggered connection Coil excess tube with wire tie 1/8" NPT Stainless Steel Weld Bushing CAUTION: 12 VOLT DC POWER MUST BE CONNECTED TO THE IGNITION POWER AFTER THE ... Autometer Boost Gauge Wiring Diagram. How to Install an Auto Meter Pro-Comp Ultra-Lite Air/Fuel Ratio Gauge - Electric on Your M or wiring diagram for your specific vehicle to learn which wire is the signal. WARNING. Do not connect ohm meter to oxygen sensor, or touch wire to ground or power. Damage to oxygen sensor will result. diagramweb.net ... Autometer Water Temp Gauge Wiring. You will have to install the Autometer water temperature sender in the rear of the right side (passenger) cylinder head. There is an existing water jacket 12 mm. Installing a tachometer or water temp gauge is a fairly easy task. The folks at Autometer put together a couple quick videos explaining what wire goes where. Auto Gauge Tach Wiring - Wiring Diagram Data - Autometer Gauge Wiring Diagram Wiring Diagram consists of numerous in depth illustrations that show the connection of varied items. It contains directions and diagrams for various varieties of wiring strategies along with other things like lights, windows, etc.

Autometer Street Tach Wiring Diagram - Trusted wiring diagrams autometer pro comp tach wiring diagram auto meter street dolgular auto meter memory tach wiring autometer. Sep 19, · Auto Meter Wiring Diagram Speedo - A wiring diagram is sometimes helpful to illustrate how a schematic can be realized in a prototype or production environment. 2. Gauge can be mounted in a 21⁄ 16". hole with brackets supplied. Gauge can also be mounted in Auto Meter Mounting Cup, or in Auto Meter Gauge Works Pods. 3. Wire gauge as shown. Red Wire (Power): Connect to a fused and switched 12V positive source that is turned on and off with the ignition switch. Place a 3 Auto gauge tach wiring wiring diagram data autometer gauge wiring diagram. It reveals the components of the circuit as simplified shapes and also the power and also signal connections in between the devices. It contains directions and diagrams for various varieties of wiring strategies along with other things like lights windows etc. Autometer gauge wiring diagram. Step 1 use the wiring diagram and test light or multi meter to locate the positive wire from the alternator to the fuse block. An initial look at a circuit layout may be complex but if you could check out a subway map you could read schematics.

Autometer Gauge Wiring Diagram - auto meter gas gauge wiring diagram, autometer amp gauge wiring diagram, autometer boost gauge wiring diagram, Every electrical structure is composed of various diverse parts. Each part ought to be placed and linked to different parts in specific way. If not, the arrangement won't function as it ought to be. Aug 15, · Autometer Pyrometer Wiring Diagram auto meter ficial site trade in any aftermarket gauges for credit on new autometer gauges 15 trade in trade up read more auto Autometer Pyrometer Wiring Diagram Isspro Electric Water Temp img source: diagramweb.net Autometer Pyrometer Wiring Diagram As Well As Temperature Gauge img source. Autometer Monster Tach Wiring Diagram. Engine Cylinder Adjustments. This tachometer is factory calibrated for 8 cylinder engines. The wiring diagram shown is a typical installation. Figure A. -WHITE-. Any Auto Meter Shift-Lite™, or Quick-Lite™ Shift-Lite can be used with tachs 2) Pass tach wires through shock strap assembly and slide tach ... Autometer Sport Comp Tach Wiring. Engine Cylinder Adjustments. This tachometer is factory calibrated for 8 cylinder engines. Wiring Connect the tachometer wires as shown. The wiring diagram. Wiring your new Autometer tachometer into your car will complete the installation. Once you have selected a mounting location, you can run the four wires that.

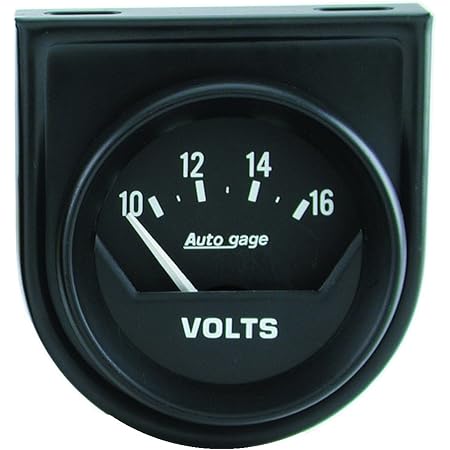

AUTO METER 2362 Autogage Electric Voltmeter Gauge, Regular, 2.3125 in.

A wiring diagram is a simplified conventional photographic representation of an electrical circuit. 8mount speedometer in a 33 dia. The electronic speedometer in this instrument is designed to operate with an electrical speed sender. W auto meter gps interface. Place a rubber grommet in the hole and route.

Fillable Online fULL Sweep eLeCTRIC pReSSURe gAUge wITh ...

The wiring To operate the Auto gage Shift-Lite.Auto Meter Autogage Gauges deliver the best bang-for-your-buck, providing levels of accuracy and durability unheard of for the price range. These gauges feature traditional incandescent lighting that illuminates the front of the dial for great visibility during day and night.

Rpm Gauge Drawing at PaintingValley.com | Explore collection ...

Autometer has designed their tach to be used with four six. Gauge can be mounted in a 21 16 dia. Pin On Gauges Car And Truck Parts A wiring diagram is a streamlined standard pictorial representation of an electrical circuit. Autometer wideband wiring diagram. Autometer wideband wiring diagram 11 12 2018 11 12 2018 3 …

How to Install a Tachometer - OnAllCylinders

Autometer Basic Tach Installation Wiring Instructions Tutorial How-To ...

Installation Instructions

meter wiring look for a small plastic black box (2" cubic) dangling from under the dash. Sometimes that's where it gets hidden.

How to Install a Tachometer - OnAllCylinders

Sep 26, 2018 · Pictured below is a copy of the wiring diagram for the Autometer Oil Pressure Gauge. To install an oil pressure gauge you will first need to purchase one. Pictured below is a copy of the wiring diagram for the Autometer Oil Pressure Gauge. left is labeled 'S', signal wire from oil pressure or water temp sensor? .

auto gauge tachometer wiring diagram, auto gauge tachometer ...

Autometer Trans Temp Gauge Wiring Diagram This page provides instructions for installing a transmission temperature gauge To this end, we're installing an AutoMeter electrical transmission temperature gauge . Just follow the diagram on the back of the gauge, and we'll help with the. INSTALLATION INSTRUCTIONS. DIGITAL TEMPERATURE GAUGES.

How to Install Auto Meter Oil Pressure Gauge - Electrical ...

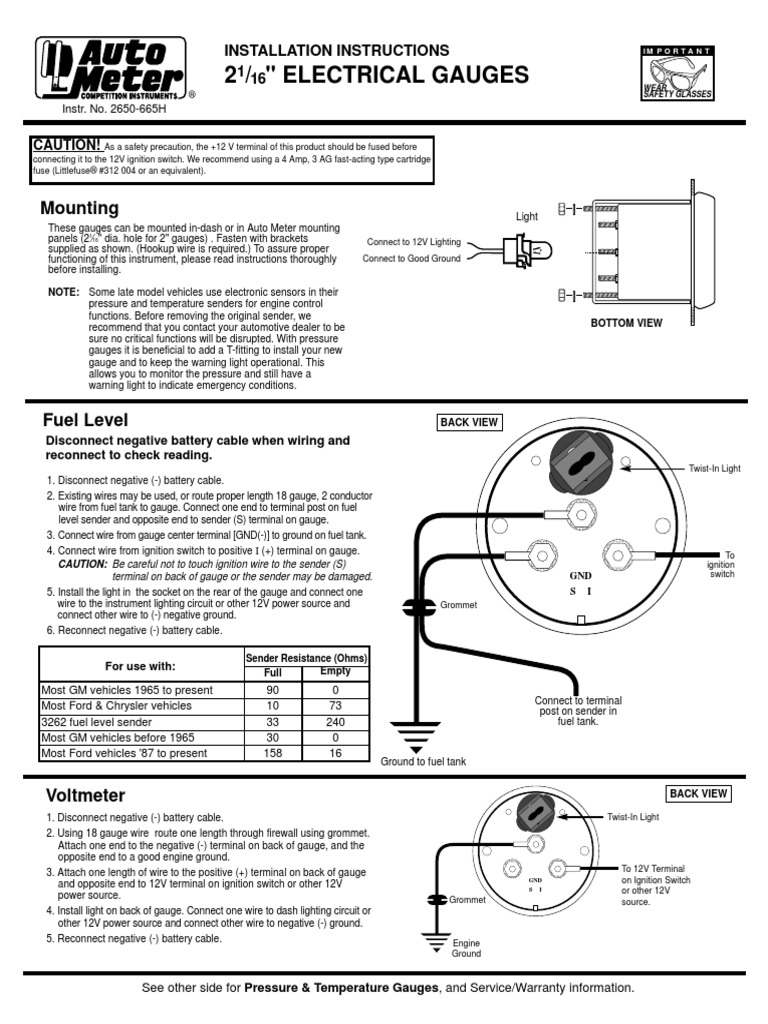

spade on back of gauge. 2. Connect ground wire from ground post on gauge to suitable chassis ground. 3. Connect wire from ignition switch to the positive I (+) terminal on the back of gauge. See figure right. 4. Reconnect negative (-) battery cable. 5. Be sure that body or mounting flange of sender is grounded to suitable chassis ground. Voltmeter 1.
