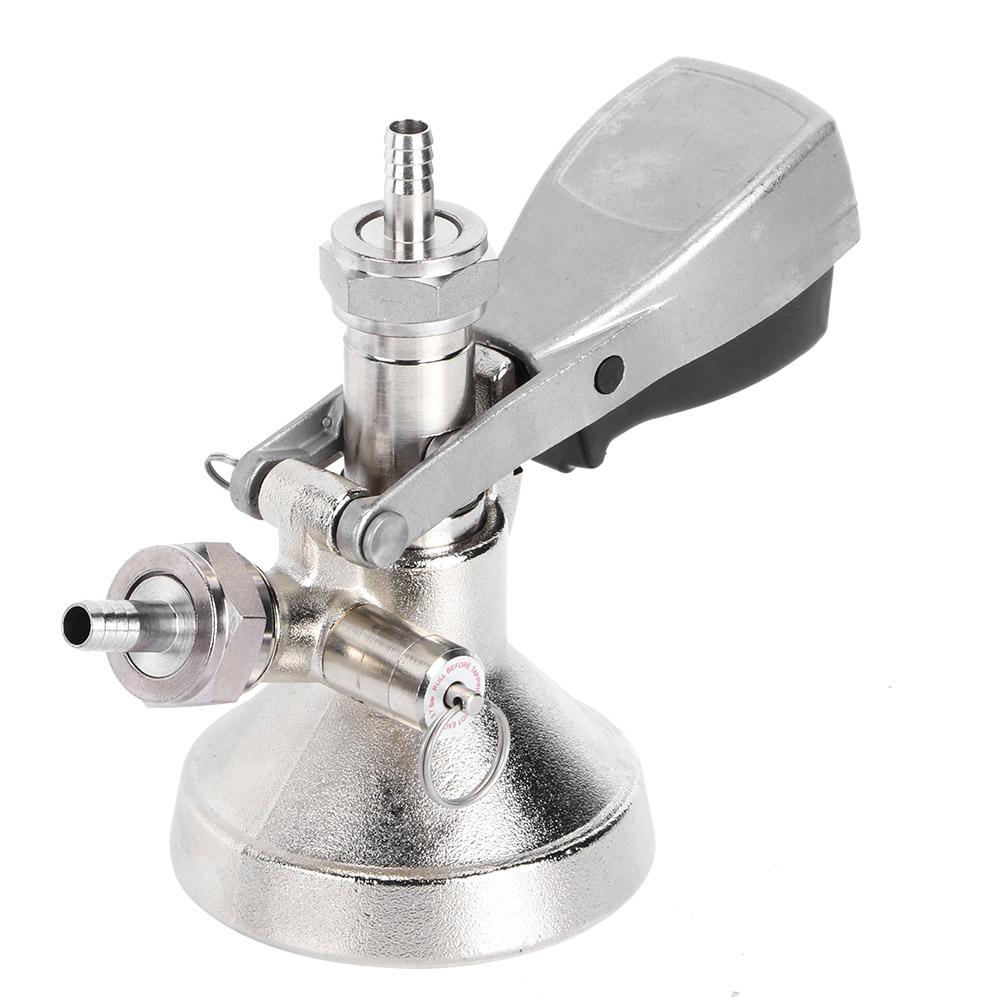

A keg coupler is essentially a keg tap that is mounted onto the keg and powered by a compressed gas line. The American Sankey coupler (also known as a System D coupler) is the coupler used by most U.S. brewing companies for their beer kegs, and is secured by twisting them into place like a screw. Your coupler attaches directly to the keg with an air-tight seal. The probe of the coupler pushes directly into the keg valve and acts as a critical junction point in your draft beer dispensing. The coupler has two ports: one for the air line to attach (so the gas gets pushed into the keg) and one for the beer line to attach (so the beer gets ...

Keg Coupler Diagram Jul 9, A keg coupler is a key element of any draft beer system. It's a small but vital piece of equipment that connects the gas and beer lines to your keg. Jul 21, in this installation guide, please view the kegerator diagram below. Insert the keg coupler into the locking neck of the beer keg and turn.

Keg coupler diagram

Oct 20, 2018 · Keg Coupler Parts Diagram. Products 1 - 23 of 23 If you have a Sankey Coupler in your Draft Beer System, make sure you always have the best replacement parts on-hand! Here at Beverage. This Taprite check valve is compatible for use with the following Taprite keg couplers: Warsteiner coupler, Bass/Watneys coupler, and Guinness/Harp coupler . Keg Coupler Parts Diagram For a visual reference of parts that are numbered in parentheses in this installation guide, please view the kegerator diagram below. Insert the keg coupler into the locking neck of the beer keg and turn clockwise 25° to lock. Repair Parts For Keg Beer Couplers. A Sankey diagram is a specific type of flow diagram, in which the width of the links is shown proportionally to the flow quantity. Entities are represented by rectangles or text, and linked if there is a flow between them. Quality replacement Parts for Beer Keg Couplers. If you have a leaky Keg Tap replace your rubber washer.

Keg coupler diagram. Use keg coupler repair parts to fix leaks in old rubber washers and ball check valves. Browse our replacement coupler handles and other keg coupler hardware. Low Profile Coupler Elbow Bend Fitting. $9.99. Plastic Check Ball Retainer. $1.28 (90% 0ff) Keg Coupler Check Ball. $1.01 (92% 0ff) Keg Coupler Care and Troubleshooting Guide Keg couplers come in many styles and types (Sanke D, S, G, A and U), but they basically all function in the similar manner. It is important to clean your couplers on a regular basis, but it is also very important to lube your couplers O rings and seals before returning to service. Most couplers consist of To connect the keg coupler (10) to the keg (17), first make sure the black pull handle of the keg coupler is in the closed (diagonal/upper) position. Insert the keg coupler into the locking neck of the beer keg and turn clockwise 25° to lock in into place. Now the keg coupler is secured to the keg. 10. Attach Tube to Coupler Connecting the coupler to the keg (AKA tapping the keg) is typically very simple, though a mystery to some. Make sure the coupler's handle is in the upper position. Pair up the threads of the coupler and valve, and then rotate the coupler clockwise about 1/4 turn to engage. Pull outward on the tap's handle and press it downward.

The diagram below shows what the different systems of couplers look like. If you already own a coupler, and are unsure as to which type you own, just match it to the diagram below. If you find your beer brand, just click on the name of the correct keg coupler or picnic pump to take you directly to the correct page to purchase the item. Feel free to browse our selection by looking at our keg coupler components diagram and clicking on the part you are interested in for more details, descriptions, and prices. If you are not sure which keg coupler parts are right for your draft beer dispensing system, let BeverageCraft specialists step in and help you make the right choice. Safer than ever - with integrated degassing feature. Micro Matic has in close co-operation with KeyKeg, developed a new dispense head for the KeyKeg product range which makes it even safer, quicker and more convenient for you to use the market leading one-way system.. This new innovative solution marks the first time KeyKeg dispense couplers will be able to dispense with pressure up to 4.1 bar ... Beer Keg Coupler Product Diagrams Sort by: Sort by Featured Items Newest Items Bestselling Alphabetical: A to Z Alphabetical: Z to A Avg. Customer Review Price: Low to High Price: High to Low 'G' System Keg Coupler Exploded View

Keg Coupler Adapter Kit - Gas and Liquid Posts. Reg. $34.66. Sale $22.73 |. Buy in monthly payments with Affirm on orders over $50. Learn more. The Kegco Keg Coupler Adapter Kit includes a gas and liquid post that allow you to switch your lines between commercial kegs and Cornelius home-brew kegs in seconds. Keg Coupler Parts. We have what you need when it's time to replace seals, check balls, tail pieces and more on your keg couplers. Filter By. Find the locking neck on the kegerator, and turn the coupler clockwise 25°. Then, pull out on the handle, push it down into the keg valve and release the handle. This will lock the coupler in place and securely attach it to the kegerator. With the coupler attached to the keg, slowly turn on the CO2 cylinder. D System: Also known as a Sankey keg coupler, this is the standard keg coupler that will work the large majority of North American beers, including craft brews.; U System: This is the style of coupler you'll need if you plan on tapping Guinness, Harp, Kilkenny and other select beers from the UK.; S System: Similar to the D System coupler, an S System coupler is also known as a European ...
